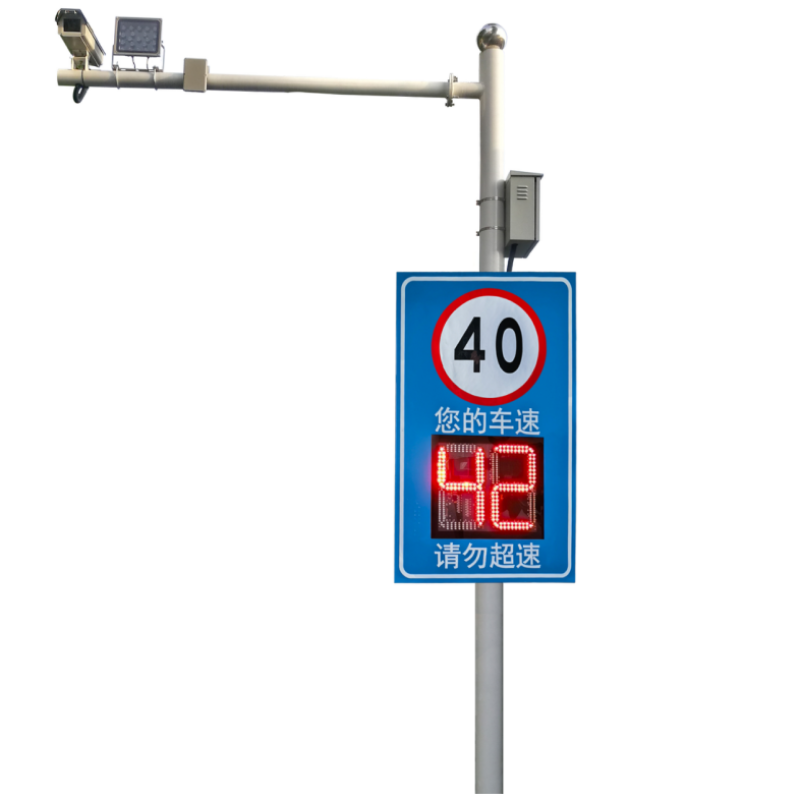

Vehicle identification real-time display radar speed measurement 88 feedback screen

Vehicle identification real-time display radar speed measurement 88 feedback screen

Radar model:  STJ1/8 ;

Speed measurement range:  1km/h~99km/h ;

Velocity measure error:  0km/h~1km/h ;

Working transmission frequency:  24.15GHz±45MHz ;

Transmitting power: Approximately 5mW ;

Reaction time:  ≤26ms ;

Interface:  RS485 ;

Detection angle:  Horizontal 5.5 °, vertical 16 ° ;

Ambient Temperature:  -30℃~+60℃ ;

Working environment humidity:  ≤98%RH25℃,No condensation ;

Protection grade:  IP65 ;

Overall dimensions:  210mm(W)×108mm(H)×44mm(D) ;

Display method:  Only display vehicle speed ;


产品详情

        The WISINFO single sided radar speed measurement feedback screen consists of three main parts: multi lane high-precision flat panel radar, speed warning signs, and 88 display screen. The system focuses on reminding and alerting drivers and passengers that the vehicle has exceeded the speed limit and needs to be slowed down immediately. The fundamental purpose of the overspeed capture system is to solve vehicle to vehicle and pedestrian accidents caused by excessive speed in certain specific areas. So a simple fixed point radar speed measurement system can intelligently cover a range of 10-20 meters for speed reduction and capture, while a feedback system can cover a range of 100 meters for speed measurement, greatly enhancing the actual effectiveness of the speed measurement system.

        The Zhenggu Zhixin radar speed measurement feedback system is unique in the industry, adopting industry-leading technology to ensure high speed measurement accuracy, stable product quality, and long service life. The radar system uses high-precision speed measurement flat panel radar, which can ensure that the speed measurement error is less than 1Km/h. Passing vehicles can observe their own speed in real-time, and when the speed limit is exceeded, the screen changes from a normal green display to a prominent red, in order to alert drivers and passengers to reduce their speed and reduce traffic accidents. It is of great significance to solve the shortage of manpower and improve regional traffic safety.
